Effective Protection
The filter reduces dust and particle ingress and helps protect the side-channel blower.
MF SERIES · BLOWER ACCESSORIES
Blower Intake Filters
MF Series intake filters mount directly on the inlet of side-channel blowers to reduce dust and particle ingress. Model selection is based on the blower connection size, with six models from 1″ to 4″ for dry-product filtration and blowers operating in pressure mode.
- Model Range
- MF100-MF400
- Connection Range
- 1″ to 4″
- Models
- 6
- Installation
- Directly on the blower inlet
- Service
- Dry-product filtration
MF100-MF400 · CONNECTIONS & DIMENSIONS

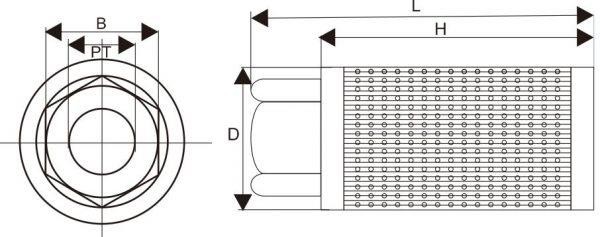

Connections and complete dimensions
Select the model by blower connection size, then use D, L and H to confirm the available installation envelope.
Scroll horizontally to review every published dimension.
| Model | Connection | D (mm) | L (mm) | H (mm) |
|---|---|---|---|---|
| MF100 | 1″ | 58 | 170 | 155 |
| MF125 | 1-1/4″ | 71 | 186 | 170 |
| MF150 | 1-1/2″ | 85 | 196 | 182 |
| MF200 | 2″ | 103 | 215 | 202 |
| MF250 | 2-1/2″ | 148 | 274 | 252 |
| MF400 | 4″ | 208 | 380 | 357 |
D, L and H dimensions are in millimetres; connection sizes are in inches.
Easy Installation
Direct connection to the blower inlet simplifies installation across 1″ to 4″ connection sizes.
Dry Applications
The MF Series is designed for filtering dry products on blowers operating in pressure mode.
