ISO-KF · VACUUM CLAMPS
ISO-KF Hose Clip Clamping Ring
ZEROVAC ISO-KF hose clip clamping rings join two compatible ISO-KF flanges with the correct centering ring and seal. Aluminium 380.0 clamp halves engage the flange lips, while a stainless-steel band and zinc-plated hardware provide circumferential clamping.
- Connection Standard
- ISO-KF
- Size Range
- DN 10-16 - DN 32-40
- Clamp Halves
- Aluminium 380.0
- Band
- Stainless steel
- Fastening Hardware
- Zinc-plated steel
Hose-clip clamp dimensions and order codes

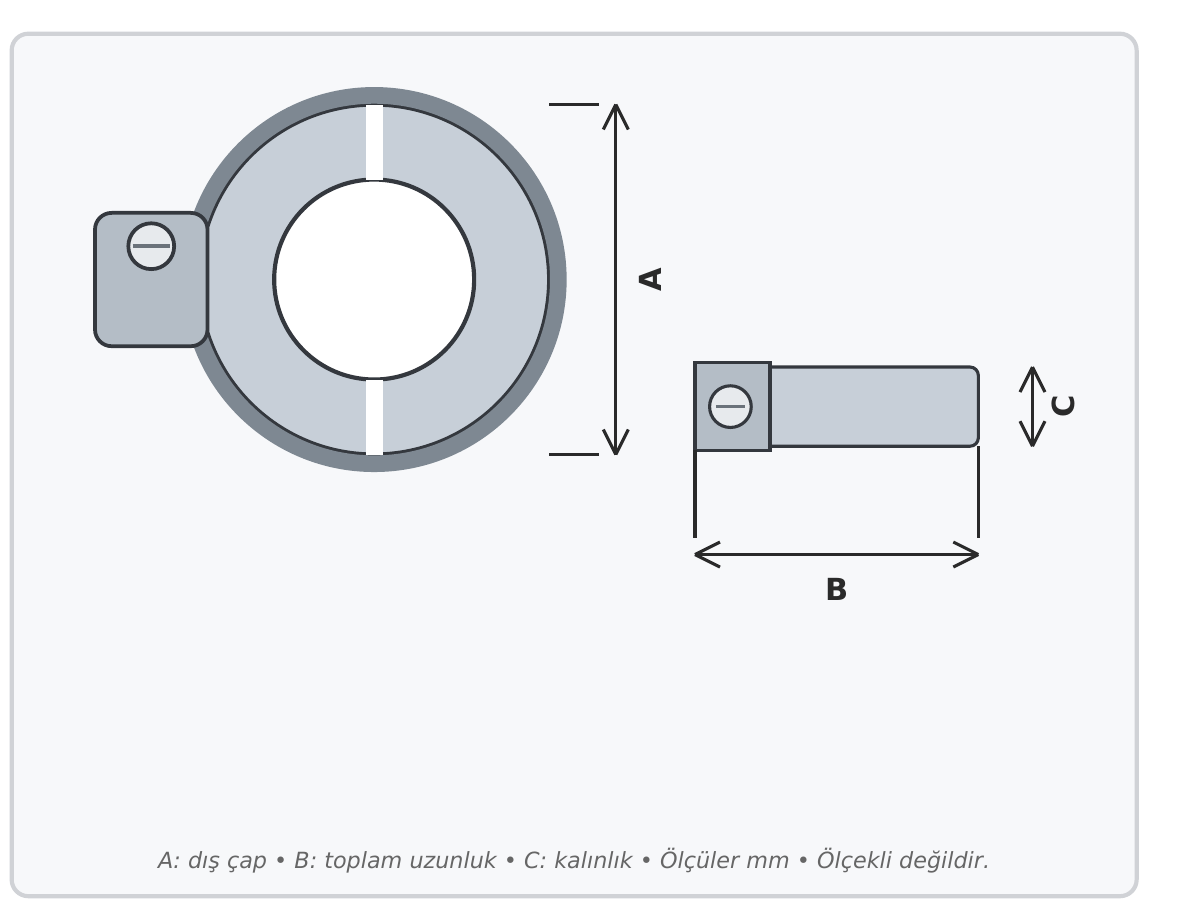

A is the outside diameter, B is the overall length and C is the clamp thickness. All dimensions are in millimetres.
Scroll horizontally to review every published dimension and order code.
| ISO-KF | A (mm) | B (mm) | C (mm) | Order Code |
|---|---|---|---|---|
| DN 10-16 | 42 | 54 | 16 | 211-016 |
| DN 20-25 | 52 | 64 | 16 | 211-017 |
| DN 32-40 | 67 | 79 | 16 | 211-018 |
Align the correctly sized centering ring and seal between the flanges. Seat both clamp halves fully on the flange lips and tighten the band screw gradually with a suitable hand tool. No tightening torque is published; follow the approved assembly instruction and avoid overtightening. The clamp does not replace the seal.
