ISO-KF Chain Clamp
ZEROVAC ISO-KF chain clamps join ISO-KF vacuum flanges with the correct centering ring and seal. Articulated Aluminium 6081 segments transfer the clamping load around the flange circumference, with maximum tightening torques specified by seal type.
- Connection Standard
- ISO-KF
- Size Range
- DN 10-16 - DN 50
- Chain Segments
- Aluminium 6081
- Fastening Hardware
- Steel 1.6582
- Seal Compatibility
- Metal / elastomer
TECHNICAL DRAWING · DIMENSIONS · ORDER CODES
Dimensions, maximum torques and order codes

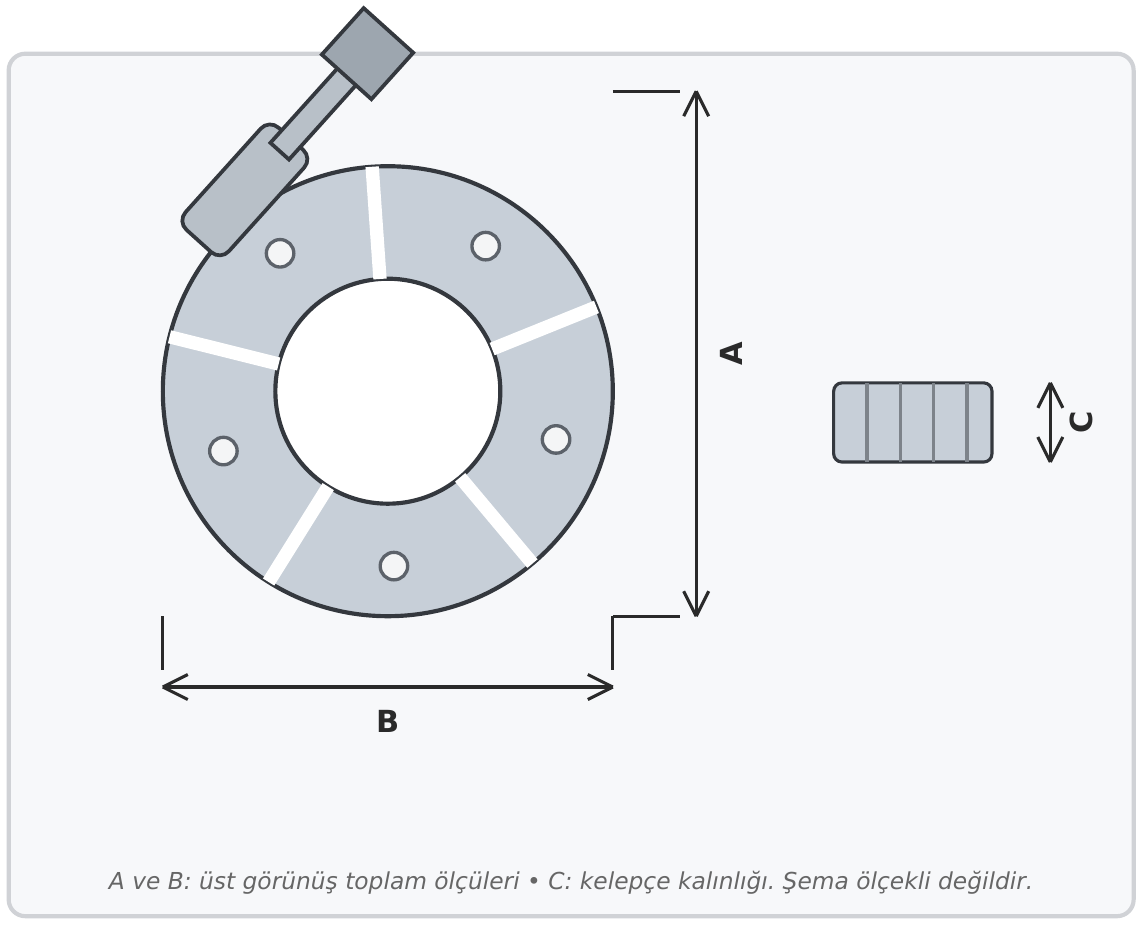

A and B show the overall dimensions in top view; C is the clamp thickness. Maximum tightening torques are given separately for aluminium and elastomer seals.
Scroll horizontally to review every published dimension and order code.
| ISO-KF | A (mm) | B (mm) | C (mm) | Aluminium Seal Max. Torque (N·m) | Elastomer Seal Max. Torque (N·m) | Order Code |
|---|---|---|---|---|---|---|
| DN 10-16 | 72 | 52 | 18 | 2.5 | 2.5 | 211-021 |
| DN 20-25 | 82.5 | 62 | 18 | 3.5 | 3 | 211-022 |
| DN 32-40 | 85 | 77 | 18 | 5 | 3 | 211-023 |
| DN 50 | 119 | 95 | 20 | 6 | 3 | 211-024 |
Fastening hardware: Steel 1.6582, gas-nitrocarburizedArticulated mechanism: Solid lubrication
INSTALLATION NOTE
Align the correctly sized centering ring and seal between the flanges. Position the chain clamp around the joint and tighten without exceeding the maximum torque shown for the seal in use. The clamp does not replace the vacuum seal.
